Crane Tele-Operation

Heavy Machinery

Computer Vision

For Sennebogen, we built a teleoperation system that was shown on bauma 2025. It features a virtual shadow depth visualization, while streaming video & control signals with low latency (sub 100ms, including AI inference for depth visualization and object classification).

Shadow Projection

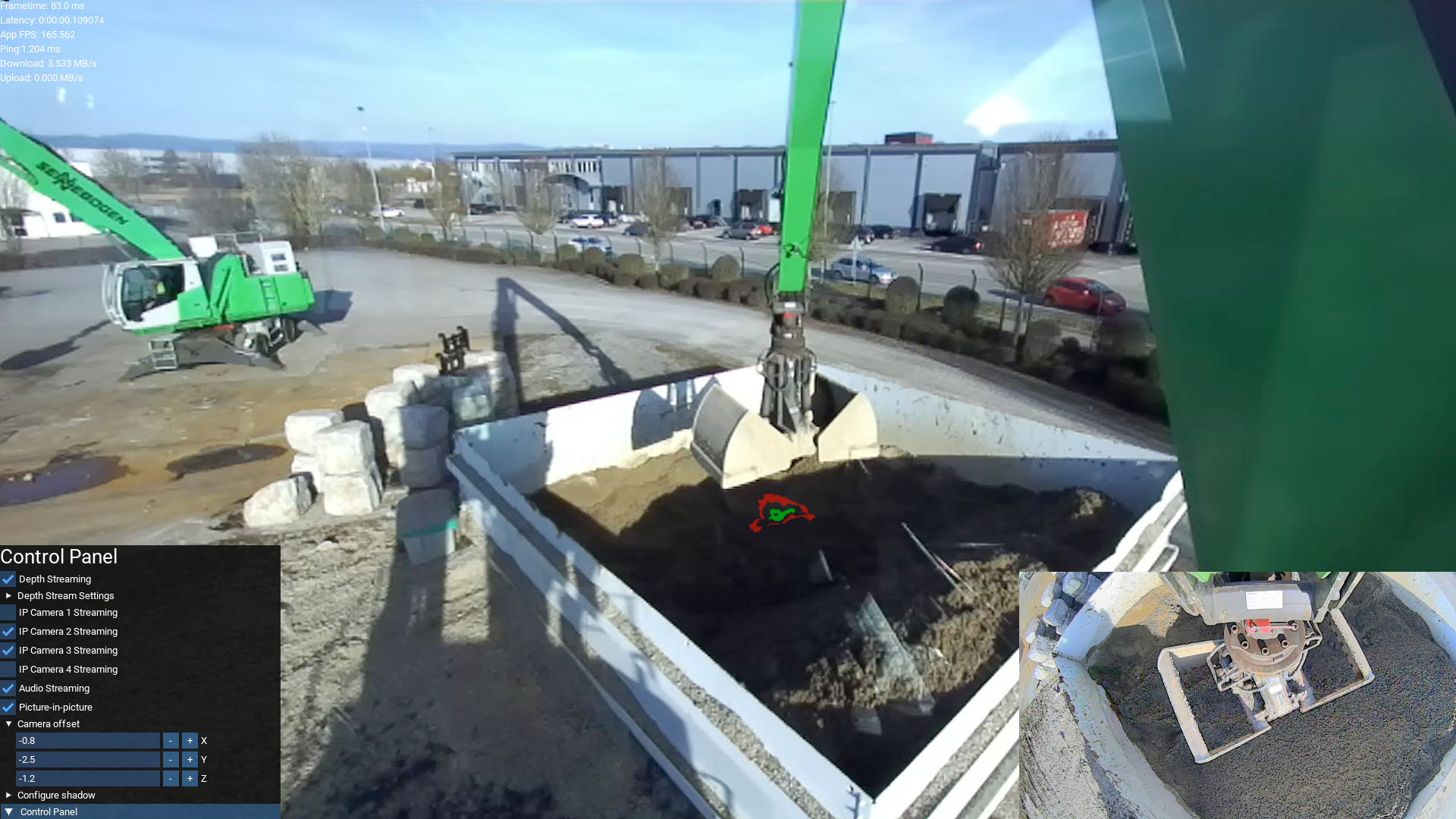

A key part of the user interface is a virtual shadow of the implement that gives the user a way to "aim" in all three axis:

1. The stereo camera creates a point cloud for the current frame
2. The point cloud is rotated by the camera IMU vector so it is aligned with the gravity vector
3. We transform the last known implement position from CAN into this point cloud coordinate system
4. Highlight pixels in the image that are near the implement position, based on their 3D point cloud position

Hardware

The key components of this system are:

Software

On the sender side two cameras are connected to the Jetson Orin via GMSL. The Stereolabs SDK renders a point cloud from the calibrated pair of ZED X One cameras.

The receiver opens a connection to the sender and decodes the stream of point-cloud & video data, using a modified version of ffmpeg with improved hardware encoding & decoding.

The receiver runs the user interface, which decodes the stream, and connects to the PCAN gateway to receive important status messages, as well as the implement coordinates.

Network connectivity between sender & receiver is provided by a set of Teltonika routers, which contain a failover to a secondary Starlink network if the primary connection fails. The backup network introduces a lot of additional latency, but still offers some limited functionality for tele-operation. Video stream & control signals are encrypted through a Wireguard VPN, which provided the lowest latency in our testing, compared to other VPN technologies.

The controllers on the receiver side and the machine connect to each other through two paired PCAN gateways.
